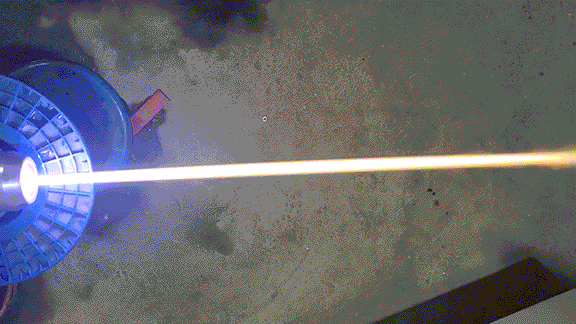

Turbulent flow generator

Turbulent plasma torches are mainly used in hazardous waste treatment, metal smelting, energy catalysis, oil-free ignition and other fields.

Model parameter	TPT-10	TPT-20	TPT-30	TPT-50	TPT-100	TPT-150	TPT-200	TPT-300	TPT-500	TPT-1000	More ….
Input Voltage	480V，Three phase AC(Or customized according to customer requirements)
Input Frequency	50Hz or 60Hz
Maximum Power	10KW	20KW	30KW	50KW	100KW	150KW	200KW	300KW	500KW	1MW	…
Heat dissipation mode	Air-cooled	Air cooling+water cooling
Protection mode	Lack of phase, water, overcurrent, overvoltage, low voltage, short circuit and ignition prevention
Reserved remote control interface	PLC、RS485
Plasma Gas Type	Air, N, Ar, He, H, CO2
structure	Double anode
control mode	Full digital dsp control, automatic arc starting and automatic arc turning
display	Color touch screen, synchronous display of voltage, current, power, time and fault

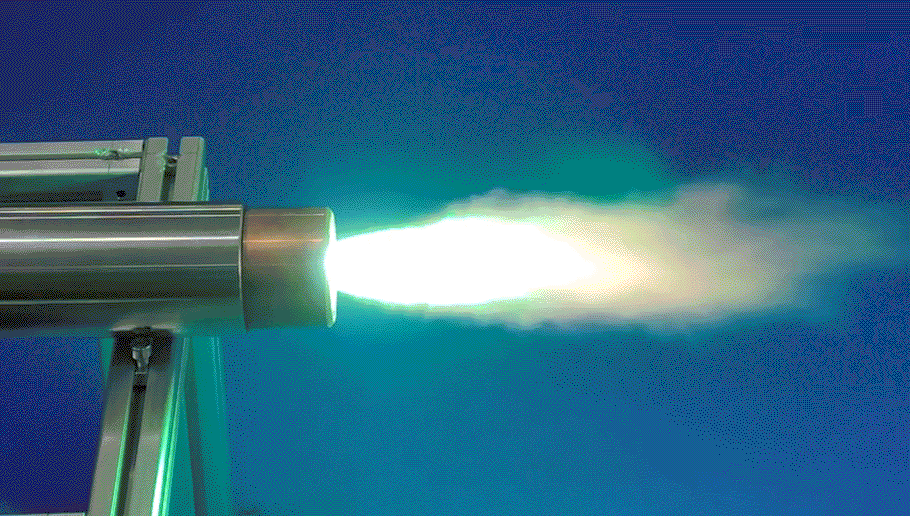

Laminar flow generator

Laminar plasma torch is mainly used in surface quenching treatment, thermal spraying, welding, flexible forming and other fields.

Model parameter	LPT-10	LPT-30	LPT-50	LPT-70	LPT-100	More ….
Input Voltage	480V，Three phase AC(Or customized according to customer requirements)
Input Frequency	50Hz or 60Hz
Maximum Power	10KW	30KW	50KW	70KW	100KW	…
Heat dissipation mode	Air-cooled	Air cooling+water cooling
Protection mode	Lack of phase, water, overcurrent, overvoltage, low voltage, short circuit and ignition prevention
Reserved remote control interface	PLC、RS485
Plasma Gas Type	Air, N, Ar, He, H, CO2
structure	Double anode
control mode	Full digital dsp control, automatic arc starting and automatic arc turning
display	Color touch screen, synchronous display of voltage, current, power, time and fault
